Tissue-Tek Prisma®/Film® Automated Slide Stainer and Coverslipper

Improving the most reliable and productive stainer and coverslipper platform in the market.  This true walk-away system is further enhanced to produce consistent high quality slides, meeting your specific stainining protocol requirements.  Its optional barcode reading capability enables laboratories to track and trace slides.


For more information, click on the tabs below, contact your Sakura representative, write to mail@sakuraus.com, or call 1-800-725-8723 and press 1 for customer service.


The Tissue-Tek Prisma® and Tissue-Tek Film® provides unmatched productivity and turn around time improvement with up to 500 slides per hour.  The system enables an efficient workflow with continuous loading and unloading capabilities. The Tissue-Tek Prisma® is the most flexible multiple stainer on the market, with a wide range of  configurations for routine and special staining.  The availability of three different volume reagent reservoirs  optimizes reagent usage and decreases operating costs.  Tissue-Tek® Coverslipping Film is a unique, resin-coated plastic 5th generation film which reduces maintenance and enables fast coverslipping and drying times.


Precise programming Standardizes staining with full control by user.
Standard and Expanded configurations Allows for customization of multiple protocols (H&E, Pap, Special Stains, etc.)
Charcoal filters and venting kit Improves lab staff safety
Large 240 slide unload station Optimizes labor efficiency


  Prisma Slide Stainer
Throuhput: Up to 500 slides per hour
Dimensions: 49.2 x 28 x 25 inches (125 x 71 x 63 cm)
Weight:  330 lbs (150 kg)
Number of Reservoirs: Start - 1 to 3 stations
Reagent - 31 to 51 reservoirs
Drying - 0 to 2 stations
Wash - 0 to 4 stations (8 programmable steps)
Heating (optional) - 2 stations

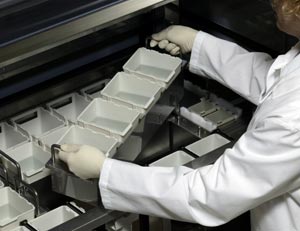

Capacity: Reagent volume - 160, 260 and 680 mL
Staining protocols - 11 runs continuously loading, and simultaniously running

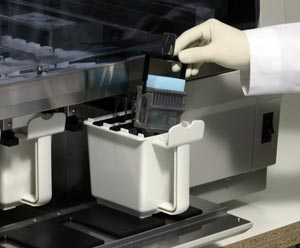

Baskets - 10- or 20- slide basket
Loading - Up to 60 slides per run
Temperature: Drying station - 86 ~ 149°F (30 ~ 65°C)
Heating station - 86 ~ 158°F (30 ~ 70°C)

  Film Coverslipper
Throughput: Up to 1,080 slides per hour
Dimensions: 28.3 x 23 x 27.2 inches (72 x 58 x 69 cm)
Weight: 165 lbs (75 kg)
Capacity: Loading- Up to 60 slides
Unloading - Up to 240 slides
Optional - Slide Barcode Reading

Related items

6130 Tissue-Tek Prisma® Standard Configuration; 115 V, 50/60 Hz
6131 Tissue-Tek Prisma® Special Staining Configuration; 115 V, 50/60 Hz
4768 20-Slide Basket; 10/cs
6136 20-Slide Basket Adapter
6160 Activated Carbon Filter
4740 Tissue-Tek Film® Coverslipper; 115 V, 50/60 Hz
4743 Tissue-Tek Film® Coverslipper with Barcode Reader; 115 V, 50/60 Hz
6508 Tissue-Tek® Barcode Reader System for Coverslippers
6134 Link between Tissue-Tek Prisma® and Tissue-Tek Film®
4770 Tissue-Tek® Coverslipping Film; 60 m, 5 rolls/cs
